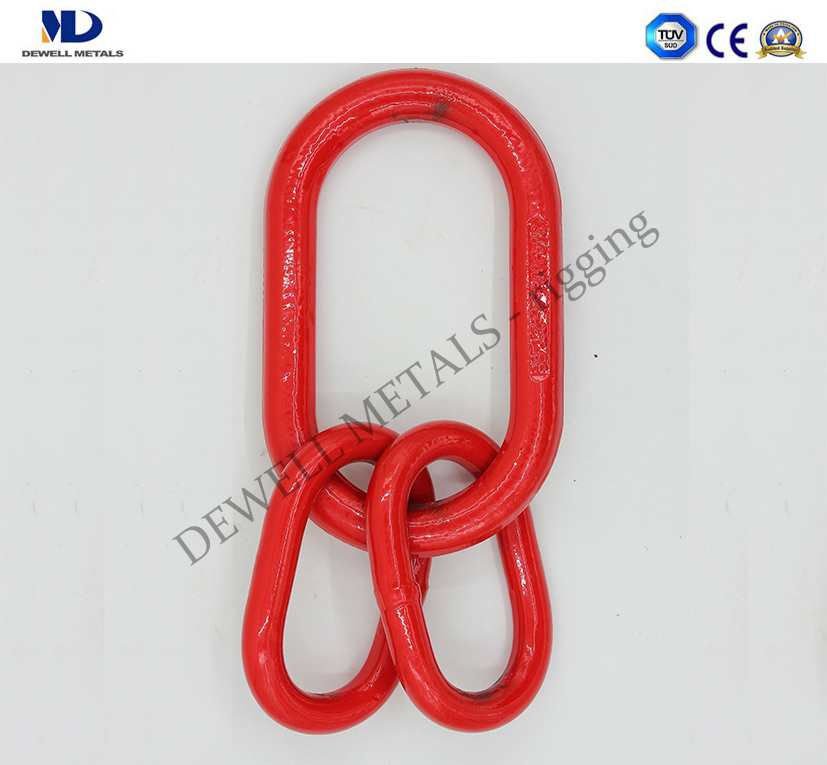

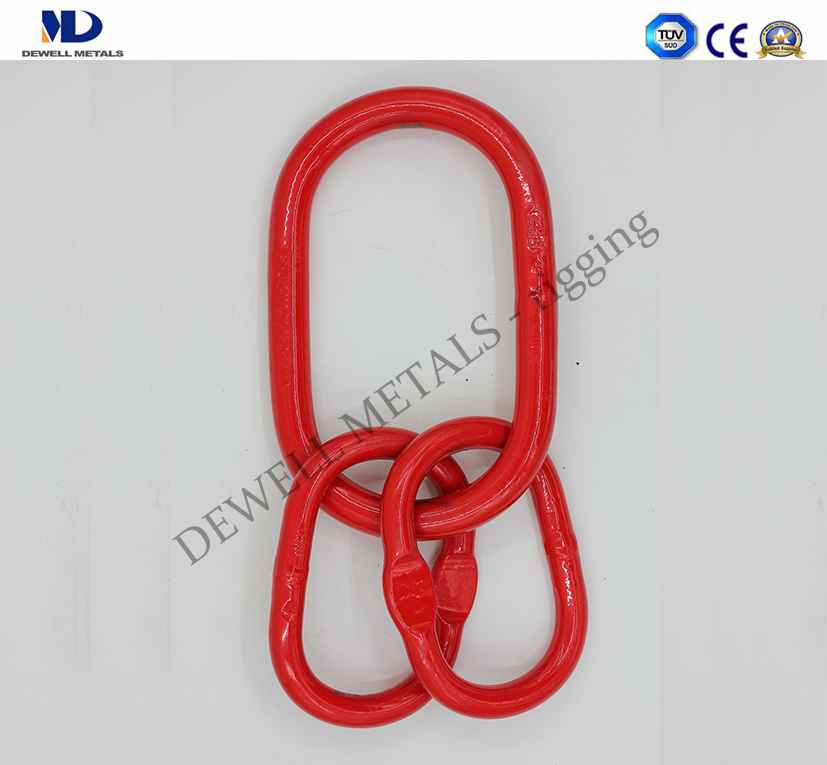

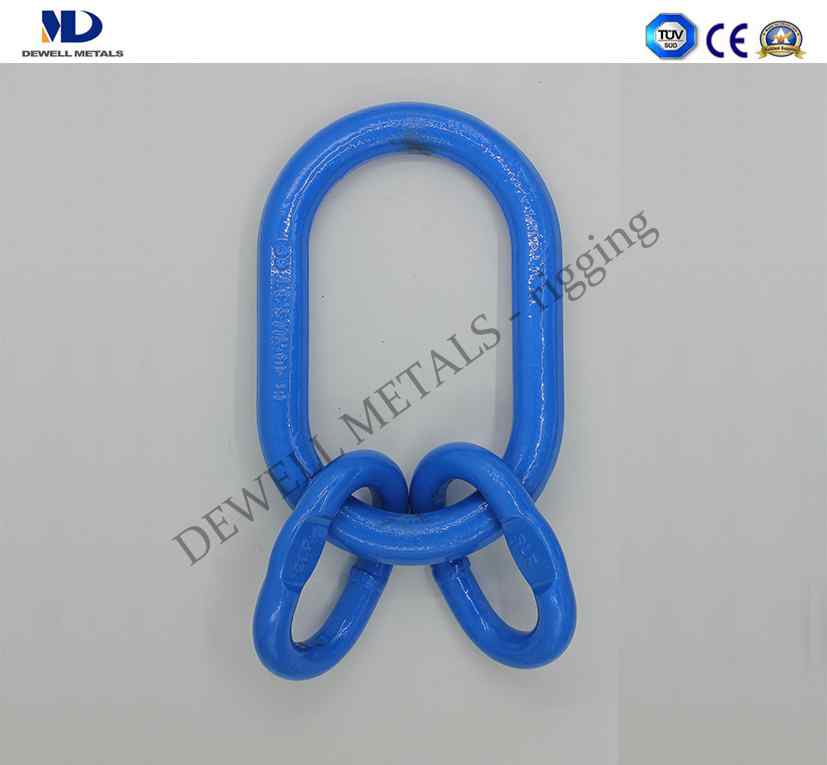

Art.10-11 G80 WELDED MASTER LINK ASSEMBLY
- Surface: GALV. OR POWDER PLASTIFIED
- Material: Alloy Steel
- Standard U.S.TYPE
- Package: in carton or polybag
Art.10-11 G80 WELDED MASTER LINK ASSEMBLY | ||||||
| SIZE | WEIGHT/KG | WLL/T | B.L/T | D | A | B |
| 1/2 | 0.83 | 2.00 | 10.00 | 14 | 100 | 60 |
| 11/16 | 1.85 | 2.60 | 13.00 | 18 | 160 | 90 |
| 3/4 | 2.12 | 4.00 | 20.00 | 20 | 160 | 90 |
| 7/8 | 3.40 | 6.40 | 32.00 | 22 | 180 | 100 |
| 1 1/8 | 6.74 | 9.60 | 48.00 | 28 | 270 | 140 |
| 1 1/4 | 9.40 | 13.60 | 68.00 | 32 | 270 | 140 |
