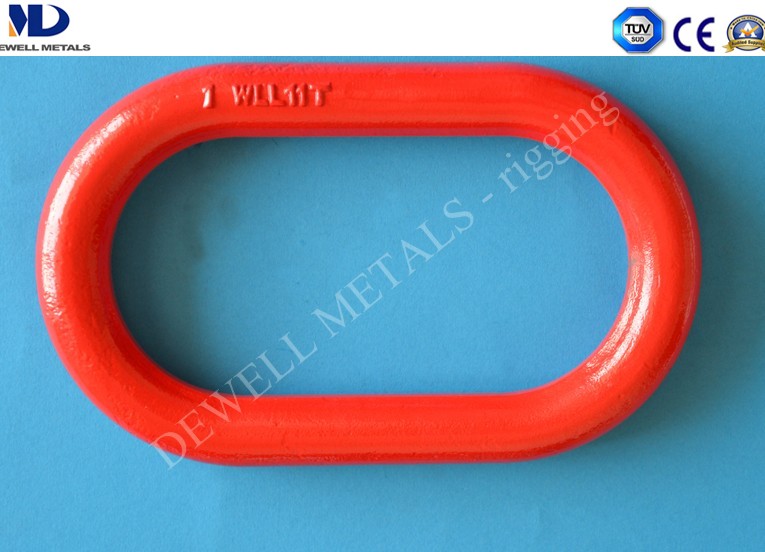

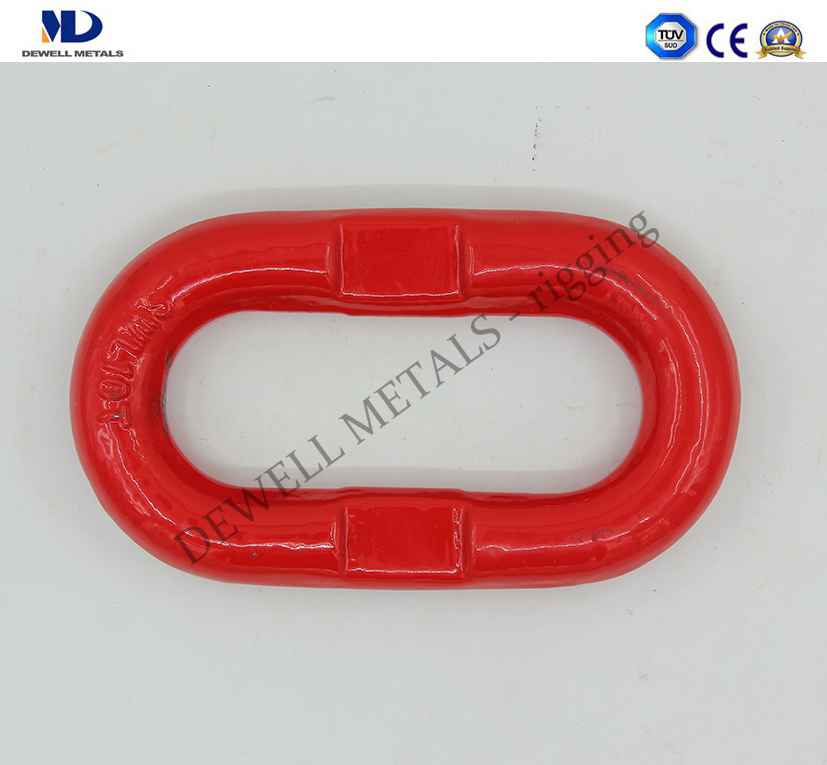

Art.10-2 G80 MASTER LINK
- Surface: GALV. OR POWDER PLASTIFIED
- Material: Alloy Steel
- Standard EUROPEAN TYPE
- Package: in carton or polybag
Art.10-2 G80 MASTER LINK | ||||||
| SIZE | WEIGHT/KG | WLL/T | B.L/T | A | B | D |
| 1/2 | 0.89 | 2.20 | 11.00 | 127 | 63.50 | 14 |
| 5/8 | 1.63 | 3.00 | 15.00 | 152 | 76.00 | 16 |
| 3/4 | 2.25 | 4.70 | 23.50 | 140 | 70.00 | 20 |
| 1 | 5.00 | 11.00 | 55.00 | 178 | 95.00 | 22 |
| 1 1/4 | 9.75 | 16.00 | 80.00 | 222 | 111.00 | 32 |
| 1 1/2 | 17.12 | 21.70 | 108.50 | 267 | 133.50 | 38 |
| 13/4 | 11.50 | 28.40 | 142.00 | 304.80 | 152.40 | 45 |
| 2 | 16.50 | 44.30 | 221.50 | 355.60 | 177.80 | 50.8 |
