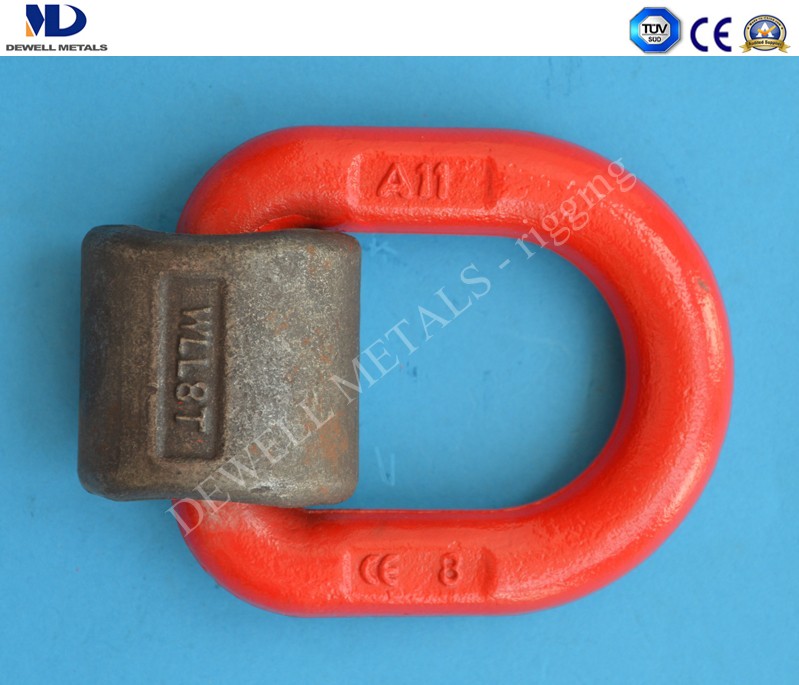

Art.10-4 G80 WELDED D-RING
- Surface: GALV. OR POWDER PLASTIFIED
- Material: Alloy Steel
- Standard D TYPE
- Package: in carton or polybag
Art.10-4 G80 WELDED D-RING | |||
| SIZE | WEIGHT/KG | WLL/T | B.L/T |
| 14-8 | 0.30 | 2.50 | 10 |
| 17-8 | 0.50 | 4.00 | 16 |
| 19-8 | 0.70 | 6.50 | 26 |
| 22-8 | 1.00 | 8.00 | 32 |
| Dimension(mm) | |||
| W | D | K | KG |
| 55 | 14 | 65 | 0.3 |
| 64 | 17 | 62 | 0.5 |
| 72 | 19 | 80 | 0.7 |
| 76 | 22 | 90 | 1.0 |
