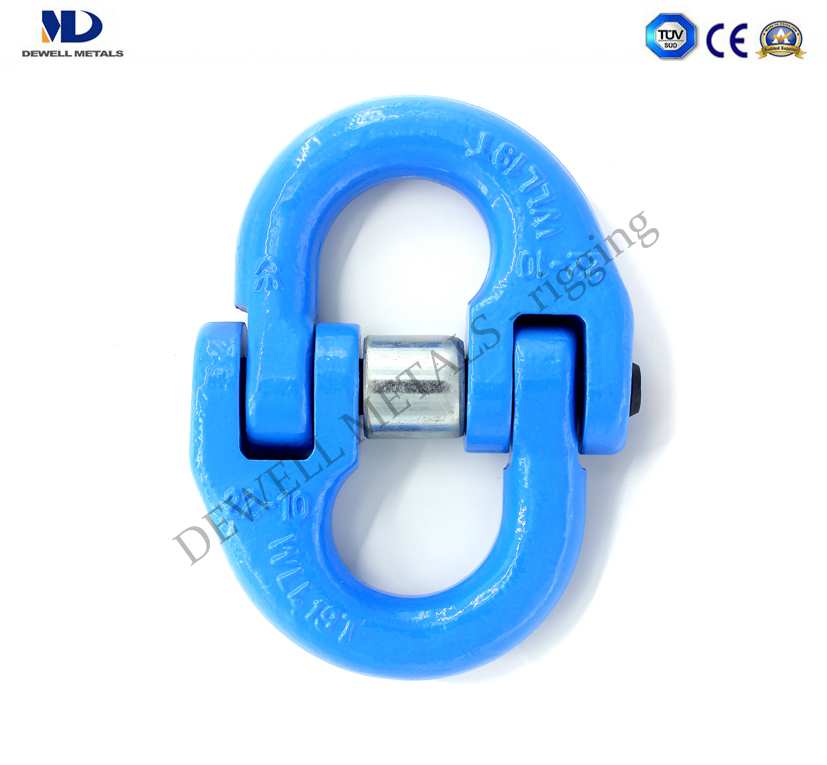

Art.9-1 G80 U.S. TYPE CONNECTING LINK
- Surface: GALV. OR POWDER PLASTIFIED
- Material: Alloy Steel
- Standard U.S. FEDERAL SPECIFICATION
- Package: in carton or polybag
Art.9-1 G80 U.S.TYPE CONNECTING LINK | |||
| SIZE | WEIGHT（KG） | WLL/LBS | B.L/LBS |
| 1/4 | 0.286 | 3500 | 14000 |
| 5/16 | 0.32 | 4500 | 18000 |
| 3/8 | 0.73 | 7100 | 28400 |
| 1/2 | 1.67 | 12000 | 48000 |
| 5/8 | 2.86 | 18100 | 72400 |
| 3/4 | 5.00 | 28300 | 113200 |
| 7/8 | 7.50 | 34200 | 136800 |
| 1 | 11.03 | 47700 | 190800 |
| 1 1/4 | 20.38 | 72300 | 289200 |
