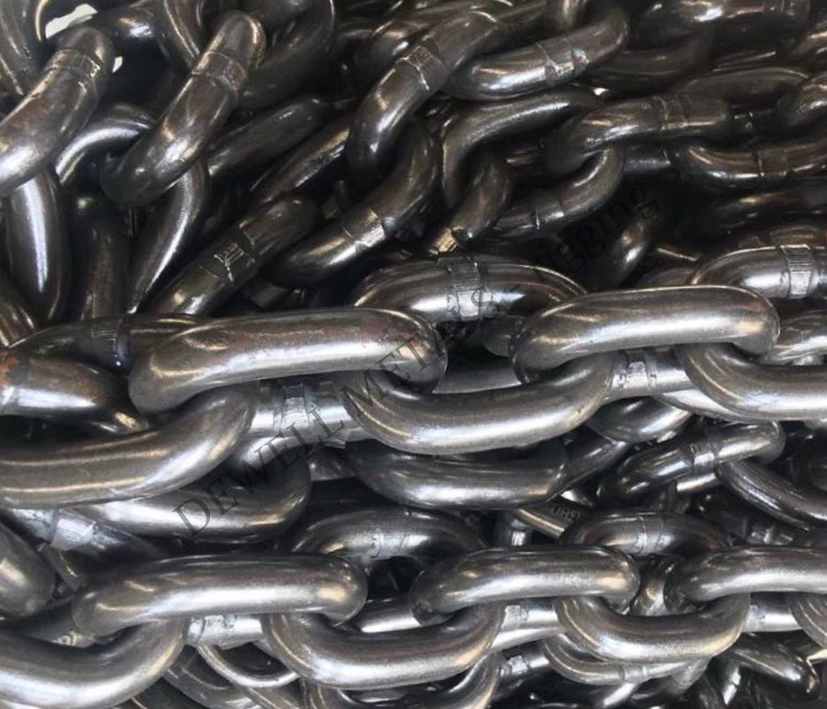

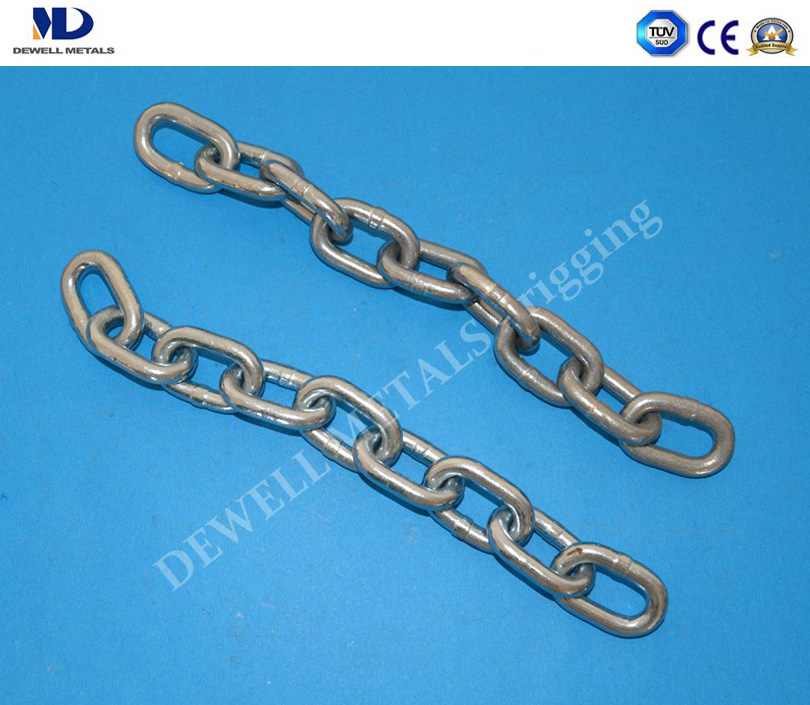

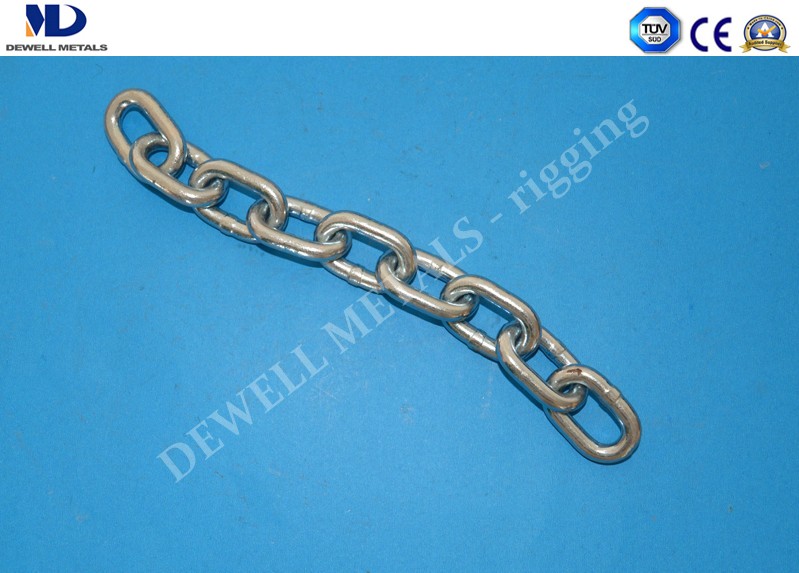

FISHING CHAIN
- Package: in carton or polybag
- Surface: GALV. OR POWDER PLASTIFIED
- Material: Alloy Steel
- Standard FISHING
FISHING CHAIN
| Kinds of chain | size(MM) | chain dia(MM) | Min.Inside Width (MM) | Max Outside Width(MM) | Weight(kg/m) | BL(KN) |
| Short Link Chain | 7x21 | 7.0 | 10 | 25.5 | 1.1 | 61.6 |
| 10x30 | 10.0 | 14 | 36 | 2.2 | 126 | |
| 13x39 | 13.0 | 18.1 | 47.1 | 3.8 | 212 | |
| 16x48 | 16.0 | 22.4 | 57.4 | 5.7 | 322 | |
| 19x57 | 19.0 | 27.8 | 68.8 | 8.0 | 454 | |
| 20x60 | 20.0 | 29 | 72 | 9.0 | 503 | |
| Mid Link Chain | 10x40 | 10.0 | 15 | 37 | 2.0 | 126 |
| 13x52 | 13.0 | 19.5 | 48.5 | 3.4 | 212 | |
| 14x50 | 14.0 | 18.5 | 49.5 | 4.0 | 246.3 | |
| 16x64 | 16.0 | 24 | 59 | 5.04 | 322 | |
| 19x76 | 19.0 | 28.5 | 69.5 | 7.15 | 454 | |
| 22x86 | 22.0 | 27 | 74 | 9.5 | 608 | |
| 26x92 | 26.0 | 31 | 86 | 13.7 | 849.5 | |
| Long Link Chain | 7x45 | 7.0 | 10 | 25.5 | 0.83 | 61.6 |
| 9x53 | 9.0 | 15 | 35 | 1.4 | 102 | |
| 11x63 | 11.0 | 18 | 43 | 2.18 | 152 | |
| 13x80 | 13.0 | 22 | 51 | 2.97 | 212 | |
| 16x100 | 16.0 | 26 | 61 | 4.44 | 322 | |
| 19x100 | 19.0 | 27 | 68 | 6.5 | 454 | |
| 22x120 | 22.0 | 37 | 84 | 8.76 | 608 | |
| 28x150 | 28.0 | 44 | 103 | 14.13 | 984 |
